Build an ESP32 Home Automation with Web Server & EEPROM

Are you looking to automate your home using a smart and affordable IoT solution? This step-by-step guide will show you how to build a reliable ESP32 Home Automation system that features a responsive web dashboard, EEPROM memory storage for relay states, and support for both web-based and physical control using switches. With this setup, you can control your home appliances like lights, fans, or sockets from anywhere on your Wi-Fi network.

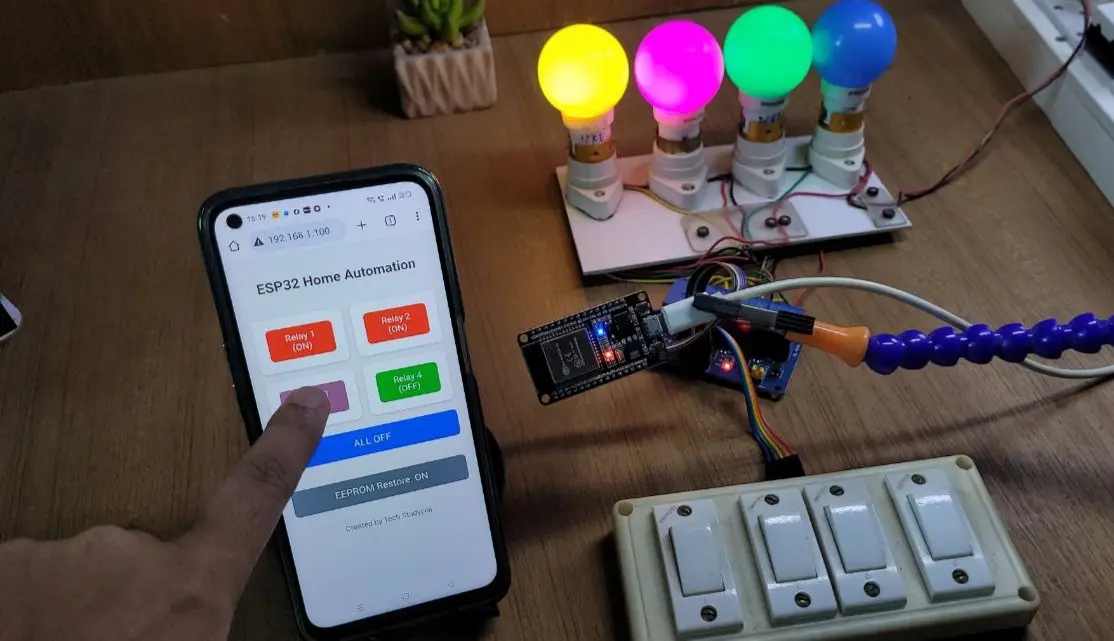

Project Key Features

• Web-Based Dashboard: Accessible from any browser on the same Wi-Fi network using ESP32’s static IP (e.g., 192.168.1.100).
• Real-Time Control: Instantly switch relays ON or OFF from the dashboard.
• EEPROM State Memory: Relay states are stored in EEPROM and restored on reboot.
• Physical Switch Integration: Works with both push buttons or latched switches.
• Responsive UI: Built with Bootstrap for compatibility with mobile and desktop screens.
• EEPROM Toggle: A button on the web UI lets you enable or disable the EEPROM state-saving feature.

Tutorial Video on ESP32 ESP-NOW Project

How the ESP32 Project Works

All OFF Function: A single button on the dashboard turns OFF all relays instantly.

Web Server Setup: The ESP32 hosts a web server on a fixed IP (e.g., 192.168.1.100). Users can access the dashboard using any browser within the same network.

Relay Control: Four relays are connected to the ESP32. Each one can be toggled via the web interface or physical buttons.

EEPROM Memory: If EEPROM restore is enabled, the last known states of relays are saved to memory and automatically restored after a reboot or power cut.

Switch Handling: Latched or push-button switches are mapped to GPIOs and monitored using the AceButton library for accurate state changes.

Range of the ESP32 Home Automation Project

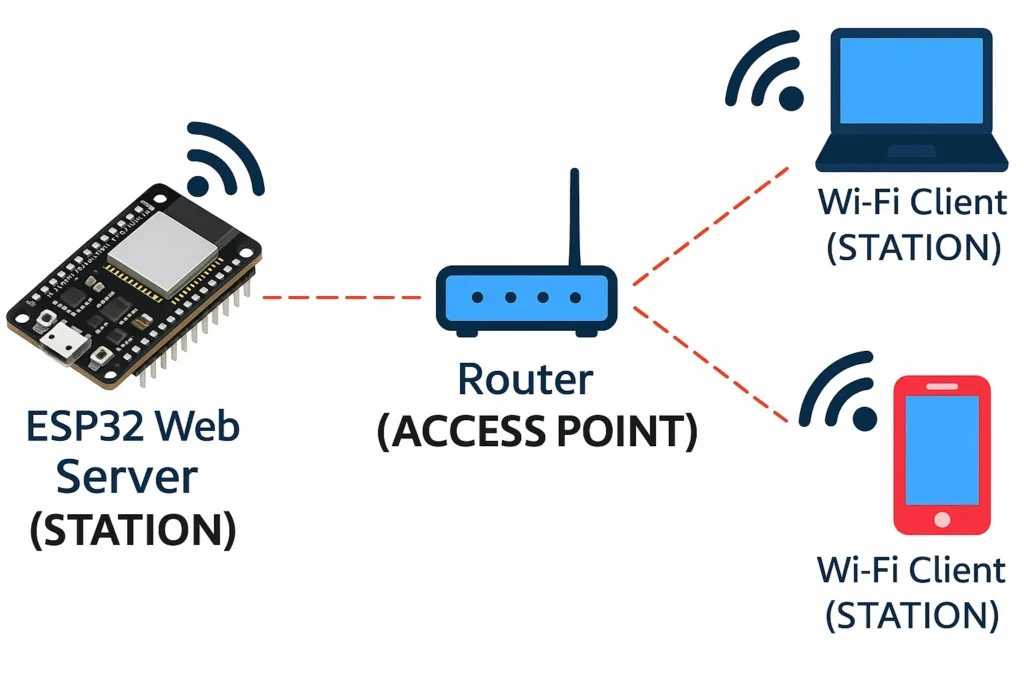

In this project, the Wi-Fi router is the hub, and the ESP32 acts as a Wi-Fi client. So, improving the router’s coverage and signal quality is the best way to increase the range and reliability of your ESP32 home automation system.

Wi-Fi Router Range Factors:

1. Router Strength: The Wi-Fi range is primarily defined by your Wi-Fi router’s signal strength and quality.
2. Router Placement: Central, elevated, and open placement of the router gives better signal coverage.
3. Obstructions: Walls, metal objects, and thick construction materials block Wi-Fi signals and reduce range.
4. Antenna Type: Though secondary, an ESP32 with an external antenna may get a stronger signal from the router.
5. Power Supply: A stable power source ensures the ESP32 keeps a strong connection with the router.

Required Components:

1. ESP32 DevKIT V1 Amazon
2. 4-channel 5V SPDT Relay Module Amazon
3. Latched switches or Push buttons

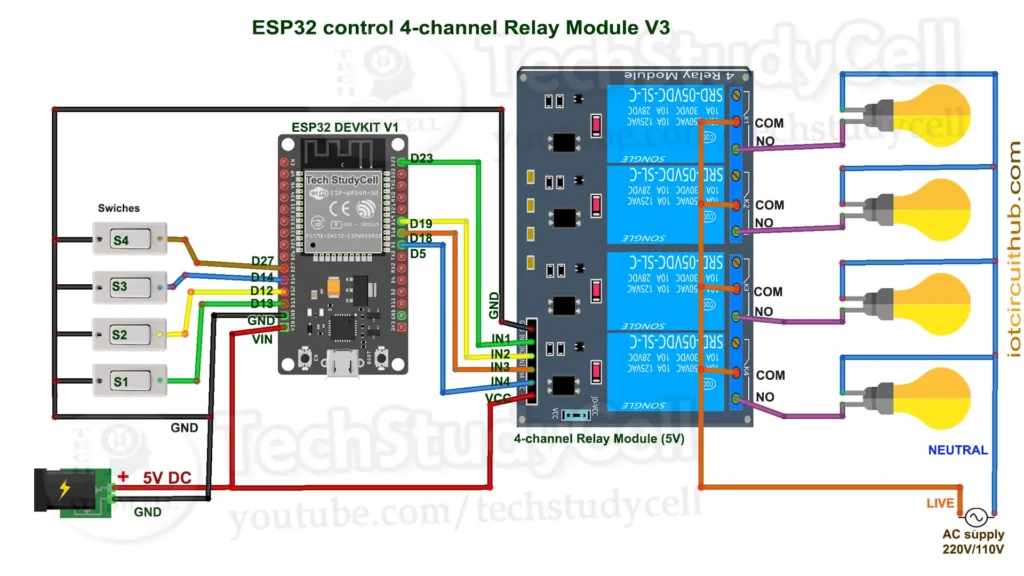

Circuit of the ESP32 Web Server project

The circuit is very simple, I have used D23, D19, D18 & D5 GPIO to control the 4-channel relay module.

And, the GPIO D13, D12, D14 & D27 are connected with switches to control the relay module manually.

If you want to use push buttons for manual control, then refer to the following circuit diagram.

I have used the INPUT_PULLUP function in Arduino IDE instead of using the pull-up resistors with each push button.

As per the source code, when the control pins of the relay module receive a LOW signal, the relay will turn on, and the relay will turn off for the HIGH signal in the control pin.

I have used a 5V 5Amp mobile charger to supply the circuit.

Please take proper safety precautions while connecting the AC appliances.

Program ESP32 with Arduino IDE

In the tutorial video, I explained all the steps for programming the NodeMCU using Arduino IDE.

1. Update the Preferences –> Aditional boards Manager URLs: https://dl.espressif.com/dl/package_esp32_index.json, http://arduino.esp8266.com/stable/package_esp8266com_index.json
2. Then install the ESP32 board (version: 3.2.0) from the Board Manager, or Click Here to download the ESP32 board.
3. You need the following libraries:
   • WiFi
   • WebServer
   • AceButton (1.10.1)

Source Code for the ESP32 Web Server Relay Project

Here’s a detailed line-by-line explanation of the source code:

1. Include Required Libraries

#include <WiFi.h>
#include <WebServer.h>
#include <AceButton.h>
#include <EEPROM.h>
using namespace ace_button;

Explanation:

This block includes all the essential libraries needed for the project:

• WiFi.h allows the ESP32 to connect to a WiFi network.
• WebServer.h provides tools to host a simple HTTP server on the ESP32.
• AceButton.h simplifies detecting different types of button events like press, release, long press, etc.
• EEPROM.h is used for reading and writing small amounts of data to non-volatile memory, which helps us save relay states and restore mode preferences even after power loss.
• using namespace ace_button; makes it easier to use classes and functions from the AceButton library without writing the full namespace each time.

---

2. Define Relay and Button Pins

const int relayPins[] = {23, 19, 18, 5};
const int buttonPins[] = {13, 12, 14, 27};
const int numRelays = 4;
bool relayStates[numRelays] = {false, false, false, false};

Explanation:

This section defines hardware pin assignments and sets up relay states:

• relayPins[] holds the GPIO numbers connected to each of the four relays. These pins will be set to LOW to turn the relays ON because the relays are “active low.”
• buttonPins[] holds the GPIOs connected to manual toggle switches for each relay.
• numRelays defines how many relays/buttons are present, which helps in iterating over them later in loops.
• relayStates[] keeps track of the ON/OFF status of each relay in software. It starts with all relays OFF (false).

---

3. EEPROM and Status LED Settings

const int eepromLed = 2;
const int EEPROM_SIZE = 64;
const int EEPROM_FLAG_ADDR = 0;
const int EEPROM_STATE_ADDR = 1;
bool eepromRestoreFlag = false;

Explanation:

This section sets up EEPROM usage and a visual LED indicator:

• eepromLed is the GPIO connected to an LED (often GPIO 2, onboard LED), which shows whether EEPROM restore mode is active.
• EEPROM_SIZE sets how much space we want to allocate for EEPROM usage.
• EEPROM_FLAG_ADDR is the memory address where the “restore mode” flag is stored (0 or 1).
• EEPROM_STATE_ADDR is where we begin storing the actual relay states.
• eepromRestoreFlag holds a boolean value in RAM indicating whether saved relay states should be loaded at boot.

---

4. Setup AceButton Objects

ButtonConfig buttonConfigs[numRelays];
AceButton buttons[] = {
  AceButton(&buttonConfigs[0]),
  AceButton(&buttonConfigs[1]),
  AceButton(&buttonConfigs[2]),
  AceButton(&buttonConfigs[3])
};

Explanation:

Here, we create four AceButton objects, one for each button, and assign a configuration object (ButtonConfig) to each of them. These configuration objects allow each button to respond to specific events, such as press and release. This is critical for our “latched switch” style control, where pressing turns the relay ON and releasing turns it OFF.

---

5. WiFi Configuration and Web Server Setup

WebServer server(80);
IPAddress local_IP(192, 168, 1, 100);
IPAddress gateway(192, 168, 1, 1);
IPAddress subnet(255, 255, 255, 0);
const char* ssid = "";
const char* password = "";

Explanation:

This sets up a simple web server and assigns a static IP configuration:

• server(80) creates an HTTP server listening on port 80.
• local_IP, gateway, and subnet define the static IP settings so your ESP32 always uses the same address on your local network.
• ssid and password should be replaced with your actual Wi-Fi credentials so the ESP32 can connect to your router. So here you have to enter the WiFi name (ssid) and password.

---

6. EEPROM Utility Functions

void saveRelayStates() {
  for (int i = 0; i < numRelays; i++) {
    EEPROM.write(EEPROM_STATE_ADDR + i, relayStates[i]);
  }
  EEPROM.commit();
}

void loadRelayStates() {
  for (int i = 0; i < numRelays; i++) {
    relayStates[i] = EEPROM.read(EEPROM_STATE_ADDR + i);
  }
}

void saveRestoreFlag() {
  EEPROM.write(EEPROM_FLAG_ADDR, eepromRestoreFlag);
  EEPROM.commit();
}

void loadRestoreFlag() {
  eepromRestoreFlag = EEPROM.read(EEPROM_FLAG_ADDR);
}

Explanation:

These functions handle saving and retrieving data from EEPROM:

• saveRelayStates() writes the current ON/OFF status of all relays to EEPROM.
• loadRelayStates() reads previously saved states from EEPROM into the program so the same relay states can be restored after reboot.
• saveRestoreFlag() saves whether EEPROM restore mode is ON or OFF.
• loadRestoreFlag() loads that flag at boot time to decide whether to restore saved relay states.

---

7. Setup Function

void setup() {
  Serial.begin(115200);
  EEPROM.begin(EEPROM_SIZE);

  loadRestoreFlag();
  if (eepromRestoreFlag) loadRelayStates();

Explanation:

In the setup() function:

• Serial.begin(115200) starts serial communication for debugging.
• EEPROM.begin(EEPROM_SIZE) initializes the EEPROM memory area.
• The saved eepromRestoreFlag is read from EEPROM.
• If the flag is true, it loads previously saved relay states so the system boots up in the same state it was in before power loss.

---

8. WiFi and Relay Initialization

  WiFi.config(local_IP, gateway, subnet);
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500); Serial.print(".");
  }
  Serial.println("\nConnected!");
  Serial.print("ESP IP: "); Serial.println(WiFi.localIP());

Explanation:

This code block connects the ESP32 to your Wi-Fi network using the static IP configuration. It waits in a loop until the Wi-Fi is connected, then prints the IP address on the serial monitor so you know where to access the web dashboard.

---

9. Set Relay and Button Modes

  for (int i = 0; i < numRelays; i++) {
    pinMode(relayPins[i], OUTPUT);
    digitalWrite(relayPins[i], relayStates[i] ? LOW : HIGH);
  }

  for (int i = 0; i < numRelays; i++) {
    pinMode(buttonPins[i], INPUT_PULLUP);
    buttons[i].init(buttonPins[i]);
  }

Explanation:

• The first loop sets all relay pins as outputs and restores their saved states by writing LOW (ON) or HIGH (OFF).
• The second loop sets all button pins as inputs with internal pull-up resistors and initializes them with AceButton.

---

10. LED and Web Server Handlers

  pinMode(eepromLed, OUTPUT);
  digitalWrite(eepromLed, LOW);

  buttonConfigs[0].setEventHandler(button1Handler);
  buttonConfigs[1].setEventHandler(button2Handler);
  buttonConfigs[2].setEventHandler(button3Handler);
  buttonConfigs[3].setEventHandler(button4Handler);

  server.on("/", handleRoot);
  server.on("/toggle", handleToggle);
  server.on("/status", handleStatus);
  server.on("/alloff", handleAllOff);
  server.on("/eepromflag", handleEEPROMFlag);

  server.begin();
  Serial.println("Web Server started");
}

Explanation:

• The status LED is set up and turned OFF initially.
• Each button is assigned a specific event handler (button1Handler, etc.) which defines how the relay reacts when the button is pressed or released.
• Routes like /, /toggle, /status, etc., are registered to specific functions that respond to HTTP requests.
• Finally, the web server is started so it can begin handling incoming requests.

---

11. Loop Function

void loop() {
  server.handleClient();
  for (uint8_t i = 0; i < numRelays; i++) {
    buttons[i].check();
  }
  digitalWrite(eepromLed, eepromRestoreFlag);
}

Explanation:

• server.handleClient() checks for and handles any HTTP requests from clients (like your browser).
• The buttons[i].check() call updates the button state and triggers the correct event if needed.
• The LED is turned ON or OFF depending on whether EEPROM restore mode is active.

---

12. Button Handlers (Latched)

void button1Handler(...) {
  if (eventType == AceButton::kEventPressed) {
    relayStates[0] = true; digitalWrite(relayPins[0], LOW);
  } else if (eventType == AceButton::kEventReleased) {
    relayStates[0] = false; digitalWrite(relayPins[0], HIGH);
  }
}

Explanation:

This example shows how a manual button controls relay 0. When the button is pressed, the relay turns ON. When it’s released, the relay turns OFF. This pattern is repeated for all four relays using different handler functions. (This is for the Latched switch for the momentary push button logic will be, it toggles the respective relay state when the button is released after pressing.)

---

13. Web Handler Functions

🔘 Toggle Relay

void handleToggle() {
  int relay = server.arg("relay").toInt();
  if (relay >= 0 && relay < 4) {
    relayStates[relay] = !relayStates[relay];
    digitalWrite(relayPins[relay], relayStates[relay] ? LOW : HIGH);
    saveRelayStates();
  }
  handleStatus();
}

Explanation:

This function toggles a specific relay when the user clicks a button on the dashboard. It updates the relay state, changes its output pin, and saves the new state in EEPROM.

---

⛔ All OFF

void handleAllOff() {
  for (int i = 0; i < numRelays; i++) {
    relayStates[i] = false;
    digitalWrite(relayPins[i], HIGH);
  }
  saveRelayStates();
  handleStatus();
}

Explanation:

This turns OFF all relays and updates both the memory and the web UI. It’s linked to the “All OFF” button on the dashboard.

---

💾 EEPROM Flag Toggle

void handleEEPROMFlag() {
  eepromRestoreFlag = !eepromRestoreFlag;
  saveRestoreFlag();
  handleStatus();
}

Explanation:

Toggles the EEPROM restore feature ON or OFF. When this feature is enabled, the ESP32 restores previous relay states on reboot.

---

📊 Relay Status in JSON

void handleStatus() {
  String json = "{";
  for (int i = 0; i < numRelays; i++) {
    json += "\"relay" + String(i) + "\":" + (relayStates[i] ? "true" : "false") + ",";
  }
  json += "\"eeprom\":" + String(eepromRestoreFlag ? "true" : "false") + "}";
  server.send(200, "application/json", json);
}

Explanation:

Returns the current state of each relay and the EEPROM flag in JSON format. This is used by the web page’s JavaScript to update the UI in real-time without reloading the page.

This ESP32 Home Automation project demonstrates how to control relays both via a web interface and physical latched switches, with real-time feedback and EEPROM-based state restoration. It combines WiFi, web server, EEPROM, and button handling using the AceButton library, making it a robust and reliable smart home solution.

How to Connect to the IP and Test the Project

Once you have successfully uploaded the code to your ESP32 board using the Arduino IDE, follow these steps to connect and test the project:

---

1. Power the ESP32 and Open Serial Monitor

• After programming, power the ESP32 via USB or external 5V source.
• Open the Serial Monitor in Arduino IDE (baud rate: 115200).
• Then press the reset button (EN).
• Wait a few seconds to see messages like: Connecting to WiFi.... Connected! ESP IP: 192.168.1.100 Web Server started

---

2. Note the IP Address

• The ESP32 connects to your Wi-Fi router using the fixed IP defined in the code: IPAddress local_IP(192, 168, 1, 100);
• Make sure your router supports this IP range. If your router has a different subnet, you may need to change this IP accordingly.

---

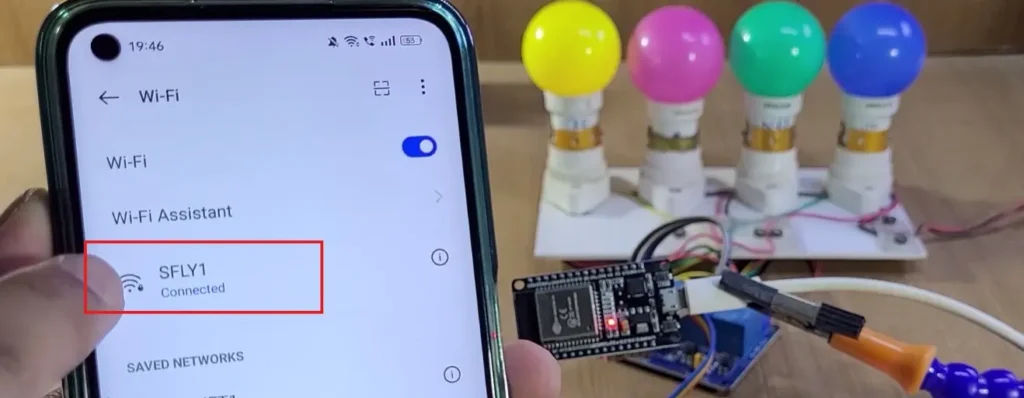

3. Connect Your Phone or PC to the Same Wi-Fi

• Your phone or PC must be connected to the same Wi-Fi network as the ESP32.
• This is important because the ESP32’s web server is accessible only within the same local network.

---

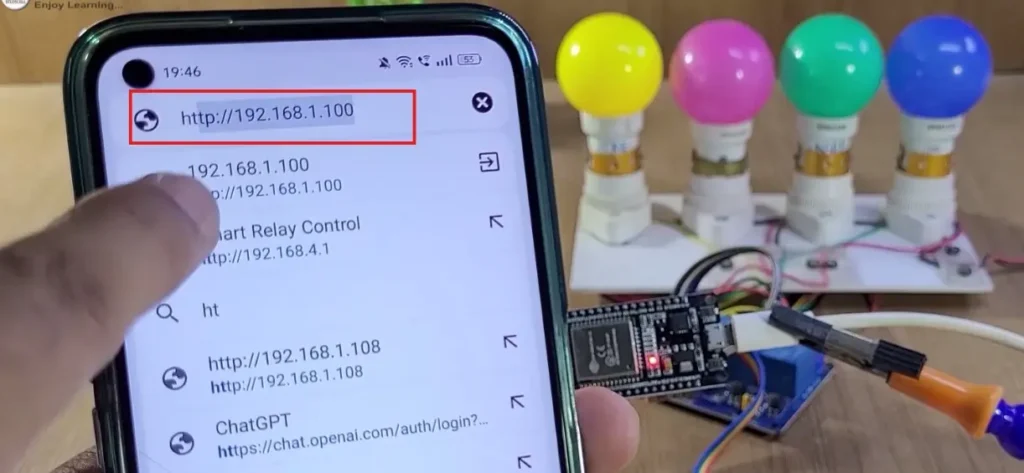

4. Open a Browser and Access the Web Dashboard

• Open any web browser (Chrome, Firefox, etc.).
• In the address bar, type: http://192.168.1.100

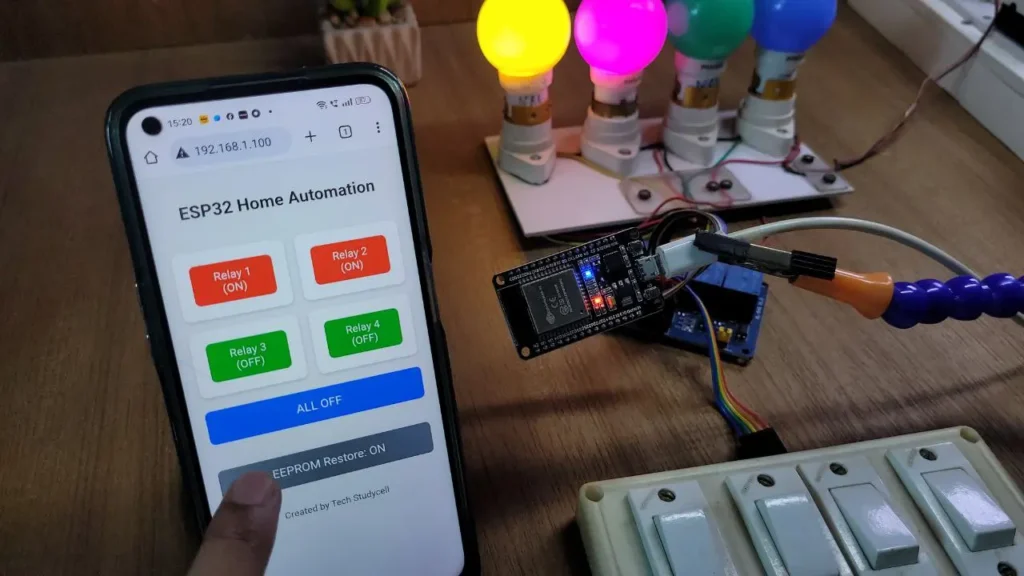

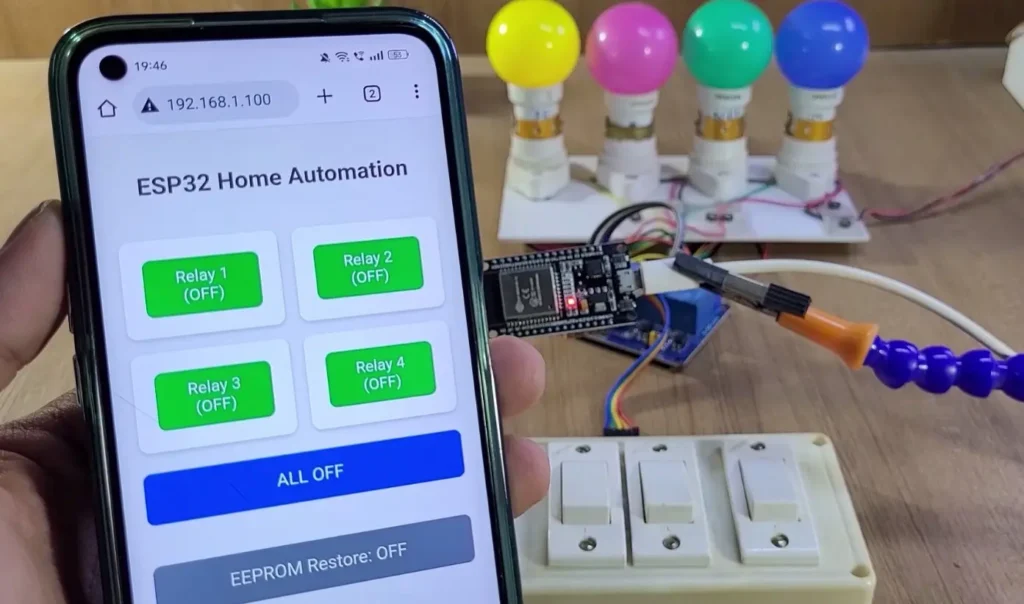

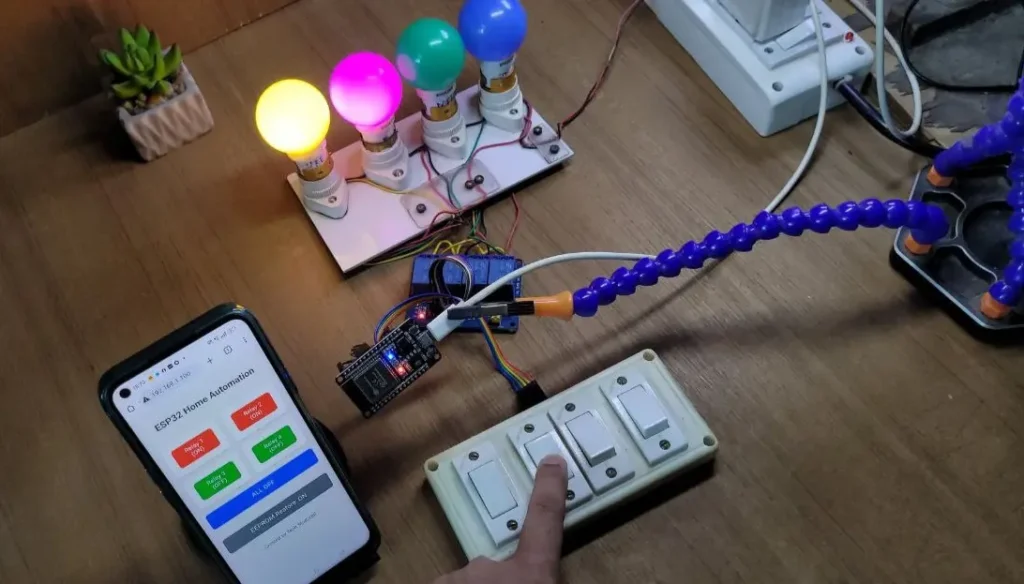

• You should see the ESP32 Home Automation Dashboard with 4 buttons to control each relay, a button to turn All OFF, and a toggle to switch the EEPROM Restore flag.

---

5. Test the Relays and Buttons

• Click any Relay button on the web page. The corresponding relay should activate (ON) or deactivate (OFF).

• Press and release the physical switch connected to each GPIO (latched mode). Relay should stay ON while pressed and turn OFF when released.
• Click the “ALL OFF” button to instantly turn all relays OFF.
• Use the EEPROM Restore toggle to enable or disable state-saving across reboots.

---

6. Verify EEPROM Restore Feature

• Toggle the EEPROM flag ON from the dashboard.
• Turn ON any relays.
• Restart or power-cycle the ESP32.
• If the restore flag is active, the relays will resume their last saved state after reboot.

---

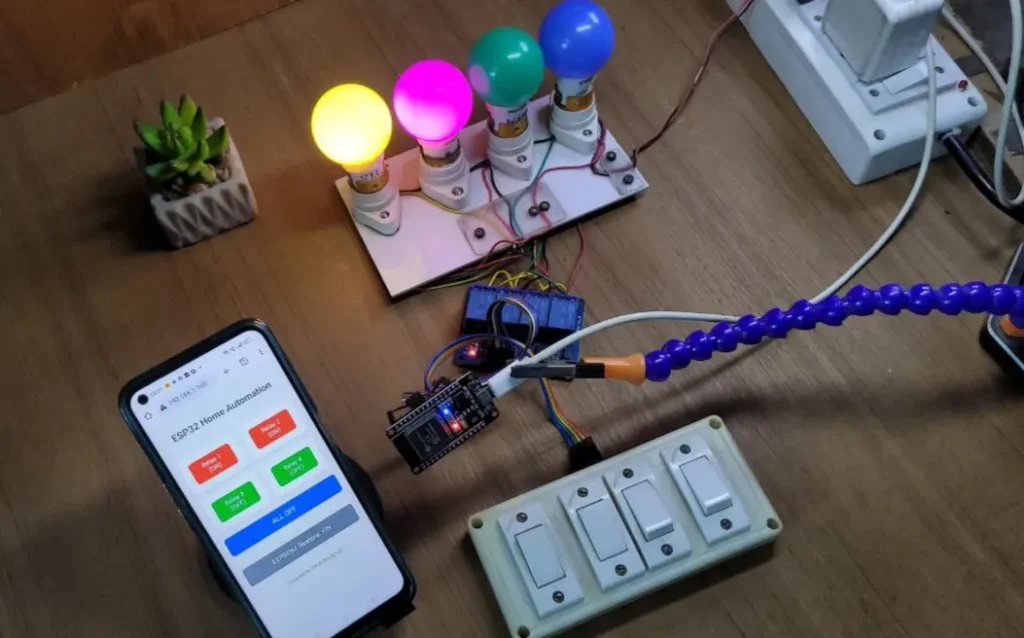

This process ensures that your ESP32 home automation setup is fully functional and can be controlled both physically and remotely via your local Wi-Fi network.

I hope you like this ESP32 ESP-NOW project.

Click Here for more such ESP32 projects.

Please do share your feedback.
